China ready stock 60 x60 mm euro fence mesh Pvc coating made in china
1.INTRODUCTION :
Material : Q195Low carbon steel wire
Wire Diameter: 2.0mm,2.3mm ,2.5mm, 2.8mm , 3mm ,3.2mm,-3.5mm(after coating )
Wire surface treatment : Galvanized core wire + PVC(plastic powder coating )
Hole Aperture : Without V shape /wave shape : 13x13mm,30mmx30mm,50mmx50mm , 60mmx60mm , 100mmx100mm( A large stock for Green & Yellow color ) With V shape /wave : 50x50mm,50x100mm , 75x100mm ,(others are available to be customerized )
SAMPLE : ALL CAN OFFER FREE SAMPLE FOR SMALL SIZE
Width of roll : 60cm , 90cm , 100cm , 150cm , 180cm , 200cm
.Height : 10m,18m,25m, 30m(or customerized )
Distance Between The Two Fence Posts: 3m
Distance Between The Two Inclined Posts: 30m
Plastic Color: Dark Green/Grass Green/White /Yellow /Red
With wave/ v - Traditional Holland /euro fence Without wave /V New Holland /Euro fence

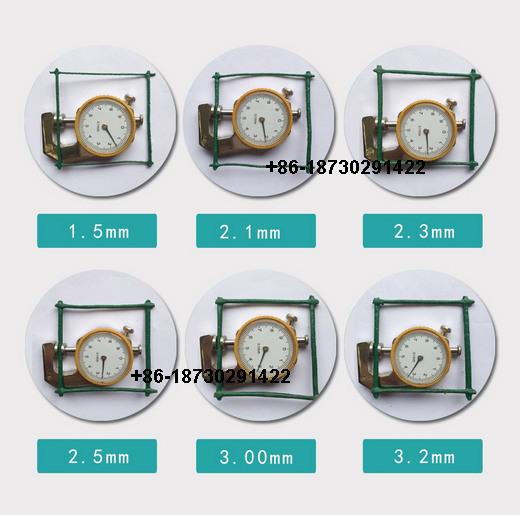

Wire Diameter : (After PVC coating )
Without V shaped (wave ) - (also as welded wire mesh )
Ready stock size : Hole : 13mmx13mm(1/2 inchx1/2 inch ), height 1m , 1.2m , 1.5m
30mmx30mm,
60mmx60mm
2. Prepare installation :
When we install it as fence , we will choose the post -peach type and round type post , but the most suitable type is swallow tail post :
Post Color : Green ,Yellow , Red ... etc
OD : 48MM is standard ( other will be customerized )
( 0.55mm wall thick) (0.8mm wall thick ) ( 1.0mm or 1.2mm wall Thick)

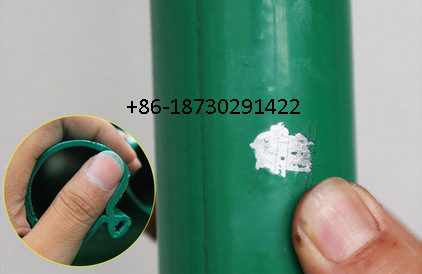

Galvanized tube + PVC coatig
Swallow tail post : Two type -embedded post and post with base plate

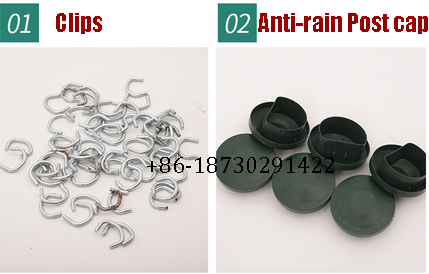

001 First step : prepare associate parts : clips , anti -rain cap & pliers :
002 Second step : Fixed two types of post in different of ground condition

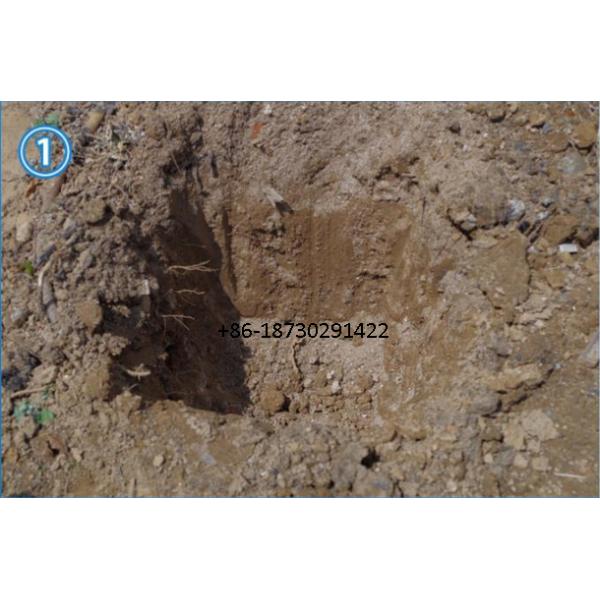

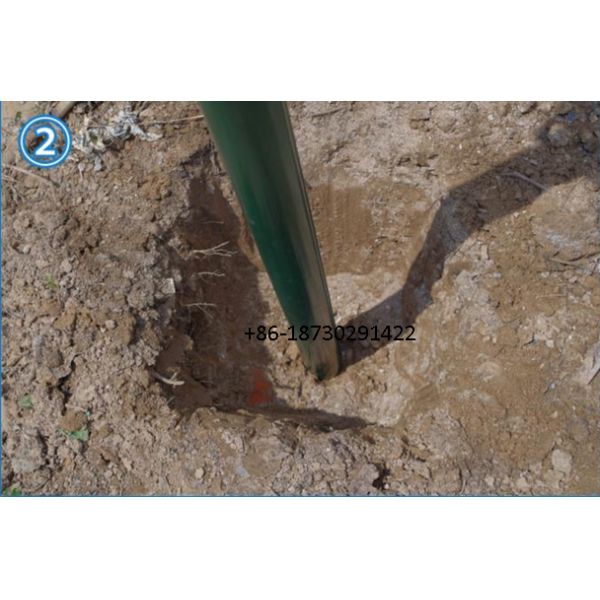

Embedded post -

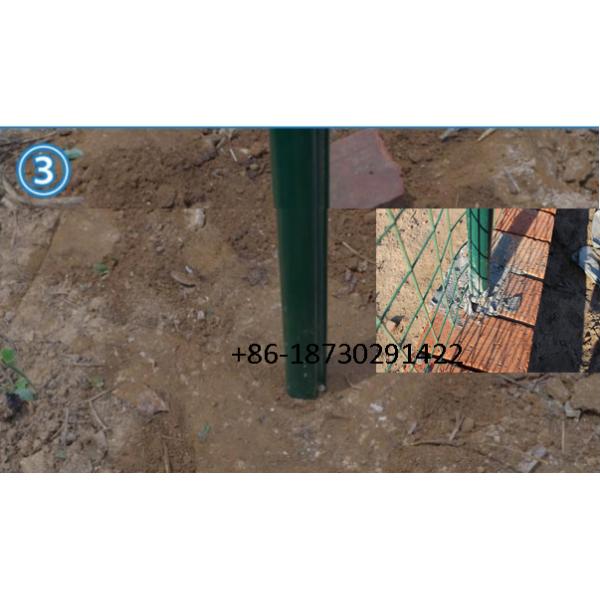

(dig hole , put post and fill full of soil , if want more strong , then we can for long-term use, it will be better if pour with concrete or lime. normally it is 30cm deepth , but if above 1.8m - need to bear more pressure , we suggest 50cm embedded deepth ,)

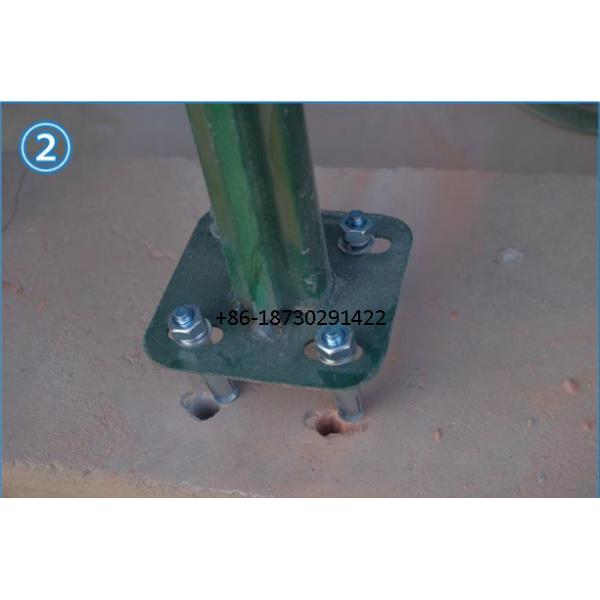

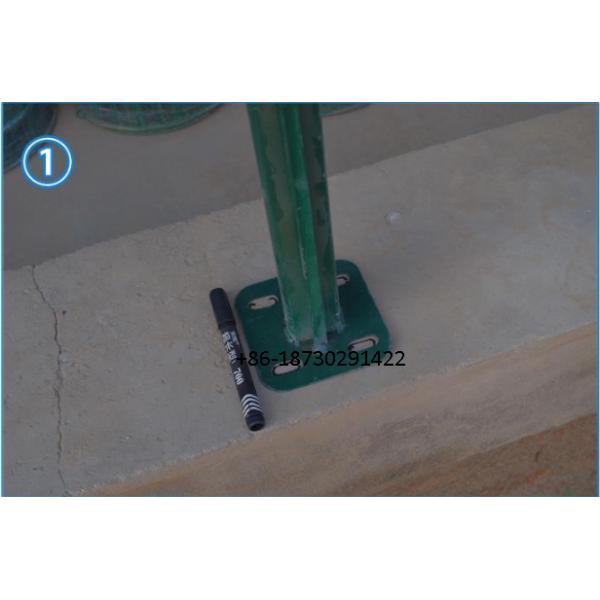

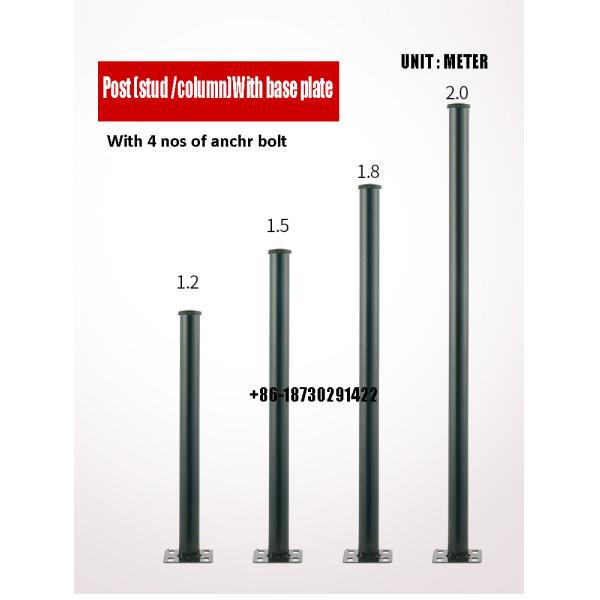

Post with base plate -

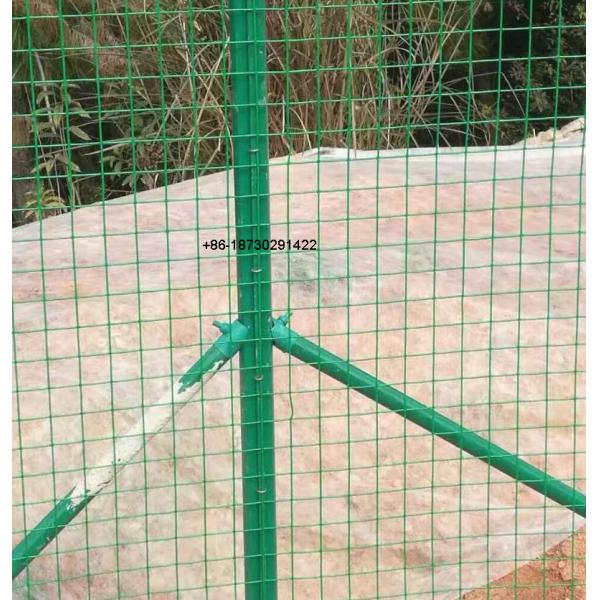

Inclined Post -( every 30meter )
One or double

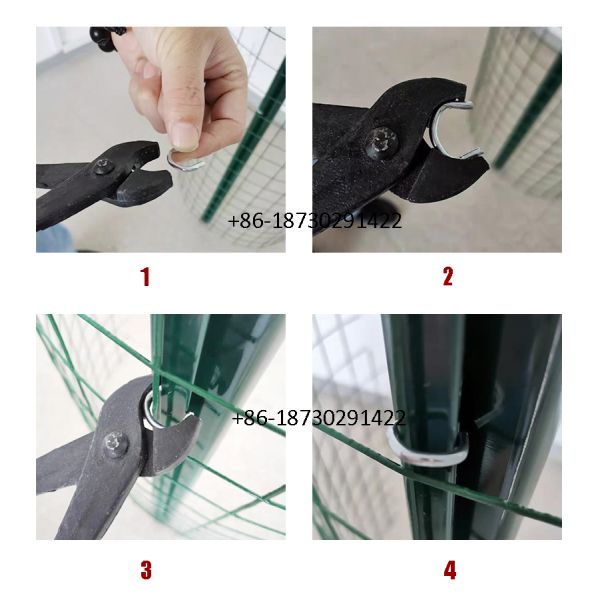

003 Third step : FixHolland /welded Mesh
3. Application :
used widely in industry, agriculture, building, transportation, mine, field, lawn, cultivation etc professions'guard and decoration
WELCOME YOUR VALUED INQUIRY :
Mobile /whatsapp/wechat :008618730291422
E-mail : alisawiremesh@hotmail.com
Person : Alisa Zhou
We Have larges stock for green and yellow color in 6x6cm in 1m,1.2m,1.5m,1.8m,2m
And also Your customerized specification is our pleasure also .
|
|
