200x40 mesh Automatic screen changer belt for plastic extruder machine
Specifications of Automatic screen changer belt for plastic extruder machine :
1,With 25 year of experience in domestic trade and the growth of foreign trade experience,we prefer LONG-TERM CORPORATION WITH YOU!
2,Main Product Lists(superior quality stainless steel 302,304,316,316L wire),
1)Dutch Weave Filter Cloth(Plain weave) Filter fineness from 320micron to 35micron,Mesh from 8x60 to 80x400.
2)Dutch Weave Filter Cloth(Twill weave)Filter fineness from 119micron to 3micron,Mesh from 20x250 to 400x2800.
3)Reverse Dutch Weave Filter Mesh(Twill weave),Mesh from 63x18 to 720x140,Width from 8cm to 130cm.
4)Reverse Dutch Weave Filter Mesh Belt(Twill weave),Mesh from 45x15 to 360x40.Width from 8cm to 130cm.
5)Stainless Steel Mesh,Mesh from 1x1 to 270x270(Plain weave) and from 300x300 to 635x635(Twill weave),Wire diameter from 0.02mm to 2.03mm
| Description of Product |
| Name of the Goods | Reverse Dutch Weave Wrie Mesh |
| Mesh | 200x40 |
| Filter Fineness | 95 micron |
| Effective Area | -% |
| Wire Diameter | 0.15x0.27 mm |
| Weight | 2.1 kg/sq.m |
| Width | 80 mm - 400 mm |
| Length | 10 m or 20 m |
| Application | Petroleum, chemical industry, food industry filter |
| Size can be adjusted according to the buyer need |
A : Do you have stock or not ?
Yes , we have a lot of stock( 800rolls stock always ) ,fast delivery .
B: Do you accept small order -1 roll ?
Yes, surely , 1 roll is no problem for us .
C : Do you offer free sample for our testing ?
Yes , we surely offer free sample for your quality confirmation .
Automatic screen changer belt for plastic extruder machine Features:
With smooth surface, high hardness, working continuously, no deformation, high temperature resistance, corrosion resistance, flexible working with excellent filtering performance.
| Continuous automatic filter belt |
| Mesh/inch | Wire Dia.(mm) | Width(mm) | Length/Roll(m) |
| 72/15 | 0.45/0.55 | 97---400 | 10/20 |
| 120/15 | 0.35/0.45 | 97---400 | 10/20 |
| 132/17 | 0.32/0.45 | 97---400 | 10/20 |
| 150/17 | 0.3/0.45 | 97---400 | 10/20 |
| 152/24 | 0.27/0.4 | 97---400 | 10/20 |
| 170/17 | 0.27/0.45 | 97---400 | 10/20 |
| 180/18 | 0.27/0.45 | 97---400 | 10/20 |
| 200/40 | 0.17/0.27 | 97---400 | 10/20 |
| 260/40 | 0.15/0.25 | 97---400 | 10/20 |
Other sizes are avaliable according to clients'request.
Edge of Automatic screen changer belt for plastic extruder machine:
Applications of Automatic screen changer belt for plastic extruder machine:
High Tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry for PP, PE, ABS, PS, PMMA and other materials.
Stainless Steel Reverse Plain Dutch Weave Wire Mesh (RPD) is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger shute wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.
Packing of Automatic screen changer belt for plastic extruder machine:
Waterproof paper on each roll + carton / wooden case
Shipping of Automatic screen changer belt for plastic extruder machine:
By sea or By Air - Express , No problem for us .
Do you accept Paypal , west Union ?
Yes It is ok for us ,No problem .
Contact us : Ms Alisa Zhou
Mobile : +86 18730291422
E-mail :alisawiremesh@hotmail.com
Wechat:perfectme88
Whats app : same as above Mobile number .
|
|

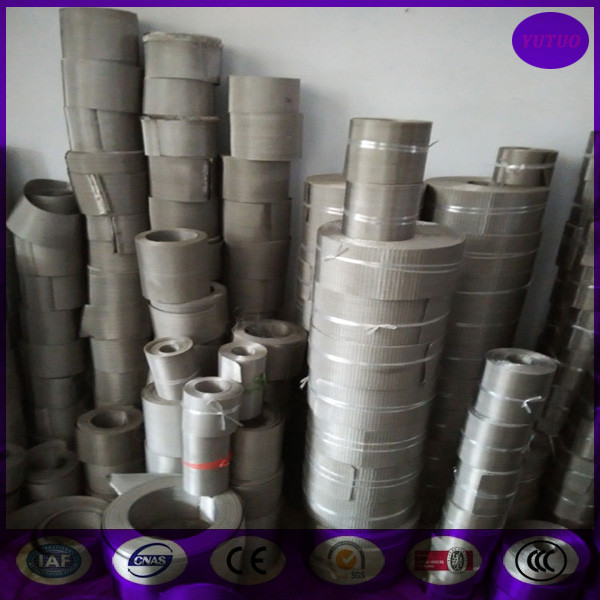

200x40 mesh Automatic screen changer belt for plastic extruder machine Images
|
