Filter Belt

Place of Origin : Hengshui China

Brand Name : XKh

Certification : iso,ce

Model Number : BELT

MOQ : 1 piece

Packaging Details : Waterproof paper or up to customer's requirement

Delivery Time : stock always

Price : Price based on quantity

Payment Terms : L/C,TT

Contact Now

Filter Belt

Filter Belt Specifications:

Material: Stainless Steel 302,304,316,316L.
Woven in reverse dutch weave pattern.
Size: 48 × 10 mesh, 72 × 15 mesh, 132 × 14 mesh, 132 × 17 mesh, 152 × 24 mesh, 152 × 30 mesh, 260 × 40 mesh, 250 × 40 mesh, 400 × 120 mesh.
Width 0.95cm-100cm.
Length 10m to 49m.
Other size available

Mesh	Wire Dia.( mm)	Roll Width	Length	Weight (kgs/m2)
72x15	0.45x0.55	0.95cm----100cm	10m-49m	4.8
120x16	0.35x0.45	0.95cm----100cm	10m-49m	4.3
132x18	0.35x0.45	0.95cm----100cm	10m-49m	4.3
152x24	0.30x0.45	0.95cm----100cm	10m-49m	4.5
160x17	0.27x0.45	0.95cm----100cm	10m-49m	3.6
170x17	0.27x0.45	0.95cm----100cm	10m-49m	3.89
180x19	0.26x0.45	0.95cm----100cm	10m-49m	4.05
200x40	0.17x0.27	0.95cm----100cm	10m-49m	2.17
260x40	0.15x0.25	0.95cm----100cm	10m-49m	2.09
325x40	0.13x0.24	0.95cm----100cm	10m-49m	1.95

Filter Belt Features:
Automatic belt filter mesh has the resistance to acid, soda, corrosion, high temperature;
The filter band is produced by reverse dutch weave, so it has greater strength to support for greater loads in filtration;
With reverse dutch weave, the ribbon filter belt has precision mesh size to effect good filtration in extrusion;

Filter Belt Application:
This type of filter screen are widely used for plastic extrusion and melt filtration in plastic industry for PP, PS, PVC, PET, PE, ABS, PMMA in belt style continuous screen changers.

Filter Belt

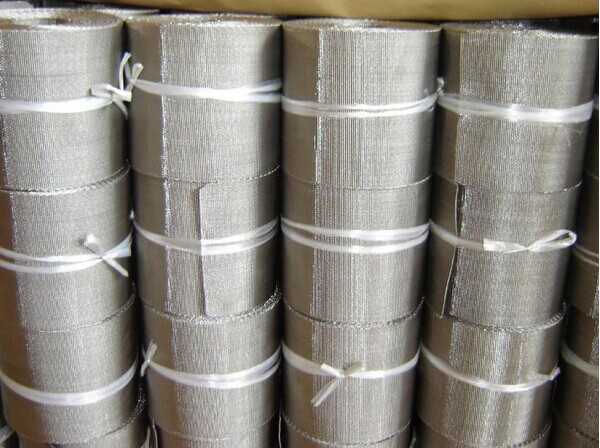

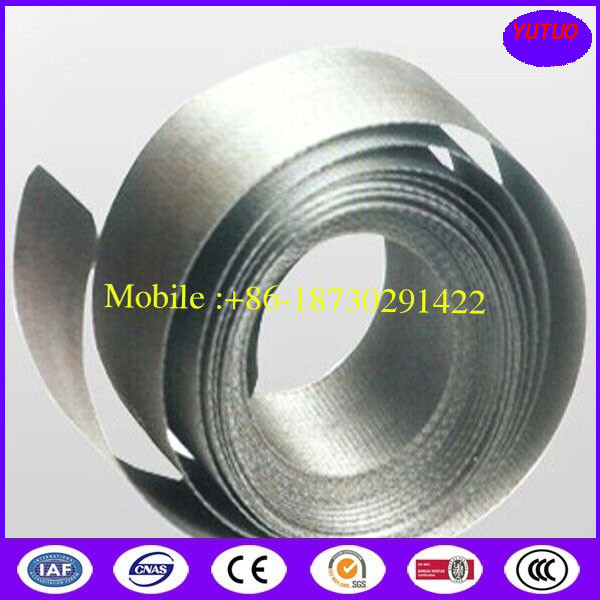

Filter Belt Images
