Stainless Steel Plain Dutch Woven Wire Mesh

Place of Origin : Hengshui China

Certification : iso,ce

Model Number : SS wire mesh

MOQ : 1 piece

Packaging Details : Waterproof paper inside ,wooden case

Delivery Time : stock always

Payment Terms : L/C,TT

Brand Name : XKh

Price : Price based on quantity

Contact Now

Stainless Steel Plain Weave Wire Mesh
Plain Dutch weave wire meshis woven using two sizes of wire. Smaller wires, as small as micron size, are used in the shute direction and are woven with a larger warp wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.
Material: Filter wire clothes are generally made of stainless steel AISI 304, 321.
Application: Filter weaves made from metal wires are used for separation of solids and clear filtration of liquids, as in the cleaning of fuels or hydraulic liquids, or in water treatment in chemical, mining industry etc.
Characteristic: aperture width, wire diameter, open screening area, weaving type, roll width, material.
Chinese Standards

Stainless Steel Plain Dutch Woven Wire Mesh
Mesh Count	Particle Retention		Thickness	Weight	Flow Rate Per Square Inch
Mesh Count	Microns	Inches	Inches	lbs./sq.ft.	Oil GPM	Fuel GPM	Air SCFM
10 x 52	325	0.0128	0.059	1.03	3.8	8.5	47
12 x 64	295	0.0116	0.048	0.76	3.7	8.3	45
14 x 88	245	0.0096	0.037	0.69	3.6	8.3	44
24 x 110	138	0.0054	0.03	0.52	3.5	7.9	43
30 x 150	102	0.0042	0.021	0.37	3.0	7.3	38
40 x 200	84	0.0033	0.016	0.27	2.5	7.2	35
30 X 150	82	0.0032	0.02	0.38	1.6	4.5	27
50 x 250	64	0.0025	0.012	0.22	1.9	6.2	33

American Standards

Weave Type	Mesh Count	Warp Wire	Shute Wire	Absolute	Nominal	Weight
Weave Type	Mesh Count	Inches	Inches	Micron Rating	Micron Rating	Per 100 sq.'
PDW	8x20	0.014	0.0126	330-350	280	49
PDW	12x64	0.024	0.0165	270-290	200	84
PDW	14x88	0.02	0.013	220-240	150	75
PDW	16x80	0.0196	0.0134	225-235	140	79
PDW	24x110	0.015	0.01	115-125	80	55
PDW - Twin Warp	24x128	2 x .010	0.004	110-120	75	34
PDW	30x150	0.009	0.007	110-112	63	33
PDW - Twin Warp	30x150	2 x .009	.007"	95-113	60	33
PDW	40x200	0.007	0.0055	70-75	55	27
PDW	50x250	0.0055	0.0045	58-63	40	22
PDW	80x400	0.005	0.003	40-45	35	17

Stainless Steel Plain Dutch Woven Wire Mesh

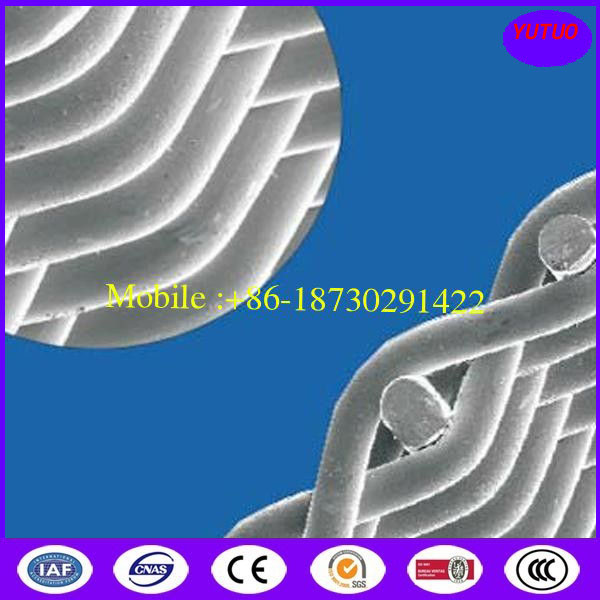

Stainless Steel Plain Dutch Woven Wire Mesh Images
